MCP

MCP (Model Context Protocol) is an open protocol that connects AI applications to external tools and data services. Think of an MCP server as a collection of tools that an AI can call: the server provides capabilities, while AstrBot connects to it, makes its tools available to the Agent, and uses their results to answer the user.

For example, a paper-search server lets the Agent respond to “Find recent papers about RAG” by actually searching for papers. A calendar server may let it look up appointments. The available actions depend on the server's tools and account permissions. MCP does not automatically grant access to every website or computer.

Before You Start

• Configure a working chat model that supports tool calling, and use AstrBot's built-in AI execution mode. Support in third-party Agent execution modes depends on their integration.
• Choose an MCP server and read its instructions for the transport, configuration, dependencies, and access token requirements.
• Check that it provides the tools you need. This integration primarily makes MCP tools available to the AstrBot Agent.

MCP works alongside plugins and Skills: plugins extend AstrBot's commands and message handling; MCP connects tools provided by independent services; Skills supply reusable task workflows.

Choose a Connection Method

Open Extensions → MCP Servers in WebUI. The entry previously shown on the standalone tools page is now in the MCP tab of the Extensions workspace.

AstrBot supports these three transports. If a provider gives you a remote endpoint, start with Streamable HTTP. It does not require a local Node.js or uv installation.

Transport	When to use it	What to prepare
Streamable HTTP	A provider's service or a remotely deployed MCP server	MCP endpoint and optional authentication headers
SSE	A remote server using the older SSE transport	SSE endpoint and optional authentication headers
stdio	Launching an MCP program in AstrBot's runtime environment	Python, uv, Node.js, or other dependencies required by that server

Use the transport specified by the server. A regular webpage or REST API URL is not necessarily an MCP endpoint; an SSE endpoint is not interchangeable with a Streamable HTTP endpoint.

Prepare a stdio Environment

Install only what your chosen server requires. Python servers may use uv / uvx, while Node.js servers often use npx. Remote connections do not require installing both.

Install dependencies in the environment where AstrBot runs. For a source deployment, use the same account and environment as AstrBot. For Docker, install them inside the container; installing them only on the host is insufficient.

The official Docker image built from the current repository includes Node.js and uv. Older or third-party images may differ. Check first, replacing astrbot with your container name:

docker exec astrbot uv --version
docker exec astrbot node --version
docker exec astrbot npx --version

If uv is missing, use Install pip Package on Data & Logs → Logs to install uv, or run:

docker exec astrbot python -m pip install uv

For Node.js in a source deployment, follow the Node.js download instructions. For Docker, update to an image with the required dependencies or add them to your Dockerfile. Packages manually installed inside a container may disappear when it is recreated.

If AstrBot cannot find a newly installed command, restart AstrBot to pick up environment changes, or use an absolute executable path in command. Escape Windows paths in JSON, for example C:\\tools\\node.exe.

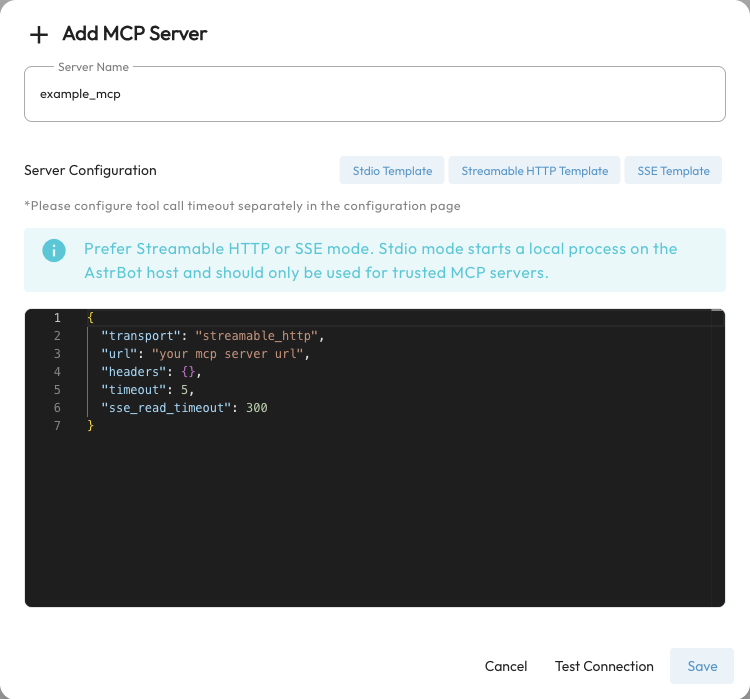

Add Your First MCP Server

1. Open Extensions → MCP Servers and click the + button at the bottom right.
2. Enter a recognizable Server Name, such as arxiv.
3. Choose the appropriate template, paste the server's JSON into Server Configuration, and replace any endpoints, paths, and tokens.
4. Click Test Connection to check connectivity and discover tools.
5. Click Save. When adding a server, AstrBot checks the connection again and connects it. The list should then show Connected and its available tools.

Add one server at a time. If a service supplies a complete configuration wrapped in mcpServers, you can paste the configuration object for one server. AstrBot also accepts the wrapper format, but a single add operation does not import every server inside it.

Remote Streamable HTTP Example

This illustrates the configuration format. example.com is a placeholder and cannot be used for a real connection test. Use the endpoint and authentication scheme provided by your service:

{
  "transport": "streamable_http",
  "url": "https://example.com/mcp",
  "headers": {
    "Authorization": "Bearer YOUR_TOKEN"
  },
  "timeout": 30,
  "sse_read_timeout": 300
}

If authentication is unnecessary, remove headers or set it to {}. For an SSE server, change transport to sse and enter its SSE endpoint.

stdio Example: Search Papers

arxiv-mcp-server documents a uv-based launch configuration:

{
  "command": "uv",
  "args": [
    "tool",
    "run",
    "arxiv-mcp-server",
    "--storage-path",
    "data/arxiv"
  ]
}

The first launch may download dependencies. Follow the server's latest README for current arguments. In Docker, store downloaded papers and other persistent files under your mounted data directory, using container paths.

For environment variables, use the JSON env object directly. This is a format example; replace the command, package, and variable names with those required by your server:

{
  "command": "uvx",
  "args": ["your-mcp-package"],
  "env": {
    "API_TOKEN": "YOUR_TOKEN",
    "API_URL": "https://example.com"
  }
}

command identifies an executable, and args contains separate arguments rather than a complete shell command. Current versions validate stdio launchers. The older command: "env" example and shell wrappers such as bash -c are not supported; put environment variables in env instead.

NOTE

stdio launches a local process in AstrBot's runtime environment. Use trusted servers and configure their permissions as needed. The Agent's local isolation settings do not automatically isolate this MCP server process.

Let the Agent Use MCP Tools

After connecting, make sure the tools are available to the current conversation:

1. Open Personas and edit the persona used by that conversation.
2. Under Persona Capabilities, find the MCP server in the tools list. Select the entire server, or use its cog button to choose individual tools, then save the persona.
3. Make sure the conversation uses that persona and describe the task naturally, for example, “Search for recent multimodal RAG papers and give me their titles and links.”

The default persona uses all available capabilities. Create or edit a custom persona to restrict the selection. Selecting a globally disabled tool in a persona does not enable it again.

Connected means the service is reachable; it does not guarantee the model will call a tool. Tool use depends on the model, persona, task, and tool descriptions. External tools such as MCP searches do not require Computer Use. Configure an execution environment and permissions only when AstrBot itself needs to execute code or access files.

Manage and Sync Servers

• View tools: click the available-tool count to see the server's tool names.
• Edit: click a server entry, update its JSON, and save.
• Connect / Disconnect: use the switch on the right. Its tools become unavailable when disconnected.
• Delete: remove the server configuration from AstrBot. This does not uninstall a stdio program or delete a remote service.
• Sync from ModelScope: use the sync button at the bottom right. Follow the dialog to obtain a personal access token and synchronize servers. Configure the desired MCP services on ModelScope first.

Troubleshooting

Symptom	What to check first
Invalid JSON	Missing quotes, trailing commas, or explanatory text pasted into the configuration
uv, npx, or node not found	Whether the executable is available in AstrBot's environment; Docker users must check inside the container
stdio command not allowed	Do not put a whole shell command in command; use the supported Python/Node.js/uv launcher and put variables in env
Remote service returns 401 / 403	Token validity and the authentication headers required by the provider
Docker cannot reach localhost	Inside a container, localhost means that container. Use a reachable host address; Docker Desktop commonly supports host.docker.internal
Connected but no tools	Whether the server provides MCP tools and the account has permission; inspect server logs and Data & Logs → Logs
Tools exist but the Agent does not call them	Model tool-calling support, persona selection, and global tool status; try a task that clearly needs the tool
Tool times out	Separate connection delays from slow tool execution. Connection settings belong in MCP JSON; search for the tool-call timeout setting in Config to adjust execution time

Hide real tokens before sharing configuration, screenshots, or logs. Keep field names visible when troubleshooting.
